Introduction

The NIC 52-RE is largely compatible with the NIC 50-RE.


However, there are some differences:

The following information will be needed to analyze the compatibility in your system.

All mentioned information can also be found in the netIC - Design guide and User manual.


It is recommmended using netIC 52 for new implementations.

netIC 50 is obsolete and will no longer get Firmware Updates.

Technical data

A comparison of the technical data for NIC 50-RE and NIC 52-RE can be found in the netIC - Design guide and User manual in the section "Technical Data".

Here is a short summary of the main differences, shown in the technical data:


NIC 50-RENIC 52-RE
FLASH4 MB serial Flash EPROM4 MB Quad SPI Flash



Supported ProtocolsPROFINET IO DevicePROFINET IO Device

Ethernet IP AdapterEthernet IP Adapter

EtherCAT SlaveEtherCAT Slave

Sercos 3 SlaveSercos 3 Slave

Open Modbus TCPOpen Modbus TCP

Powerlink SlavePowerlink Slave

Varan SlaveCCLIE Slave



Power supply:

Current at 3,3 V (typically)400 mA450 mA
Power consumptionappr. 1.3 Wappr. 1.5 W



Dimensions:

Height17,4mm10,2mm → no heatsink needed
Weightappr. 10gappr. 8g
Pin length3,2mm3,6mm





provides integrated Web Server

Hardware

Pin compatibility

NIC 50-RE and NIC 52-RE are completely pin compatible.

NIC 50-RENIC 52-RE

Design recommandations

This topic provides a summary of all changes which may need to be taken into consideration when changing from NIC 50-RE to NIC 52-RE.

It does not replace reading the whole Design Guide. It is not guaranteed that this Application Note contains all needed changes.

netIC - Design guide and User manual

Signal level of SPM/SPI interface

At the NIC52-RE, the signal levels at the pins of the SPM/SPI interface to serial dual-port memory (i.e. pins 29, 30 und 31) can amount up to 1.3 V at rest (for instance at start-up).

The exact value depends from the design of the external circuitry.

Note

Design your host system in such a way, that voltages up to 1.3 V at pins 29, 30 and 31 are logically interpreted as LOW. This must be assured by the design of your host system in order to avoid malfunction.

The cause for this behavior lies in the difference of the internal design of netX 50 and netX 52 (netX 50 has internal pull-down resistors, netX 52 has internal pull-up resistors) and in the necessity of additional pull-down resistors (10 kΩ) in NIC52-RE due to compatibility reasons.

Component placing

Do not place any electronic components in your design below the DIL32 socket!

This may cause problems, especially if the NIC52-RE is used.

Misc

There are some differences in the timing diagram of the SSIO signals for input / output for NIC 50-RE and NIC 52-RE.

These are available in the chapture "Serial Shift IO Interface", of the netIC - Design guide and User manual.

Software

Different Behavior of STA-LED

There is a different behavior of STA-LED of NIC52-RE and NIC50-RE when a PROFINET Diagnosis is reported:

If a PROFINET diagnosis is reported to the PROFINET IO Device protocol stack running on the NIC52-RE via the packet PNS_IF_ADD_CHANNEL_DIAG_REQ, the STA-LED remains on until a hardware reset occurs.


This behavior is contrary to that of the NIC50-RE where the STA-LED will not react to a PNS_IF_ADD_CHANNEL_DIAG_REQ packet.

The behavior of the NIC52-RE is intended and correct. Other Hilscher PROFINET Devices operate in the same way.

Sending an appropriate PNS_IF_REMOVE_DIAG_REQ packet will switch off the STA-LED.


However, although being incorrect, the behavior of the NIC50-RE will not be changed in the near future.

Store configuration parameters permanently

A major difference is that the functions to store configuration parameters permanently in flash memory are no longer supported on NIC 52 devices.

This has been changed to save the limited number of write cycles on the flash memory, thus preventing device defects.

So now after each reset of the netIC the configuration parameters are taken from the flash memory.

We therefore recommend to create a fixed basic configuration using the NetX Configuration Tool and configure everything else during startup via the configuration register via Modbus.



--> This is a wrong information. The function is supported since V2.3.0.0.

the customer should use the following steps, as described for NIC 50:

1. Write all configuration parameters to the corresponding registers using function code 16.

2. Set the CLR_CFG flag at register address 1999 within the command register to clear the configuration parameter in the Flash memory
3. Check status register 999 until the flag FLS_CFG has been cleared. This is necessary as erasing the configuration may last for some time.
4. Set the STR_CFG flag at register address 1999 within the command register to store the configuration parameter in the Flash memory

5. Check status register 999 until the flag FLS_CFG has been set again. This is necessary as storing the configuration may last for some time.
6. Set the INIT flag at register address 1999 within the command register.
The netIC starts with the new configuration parameters.

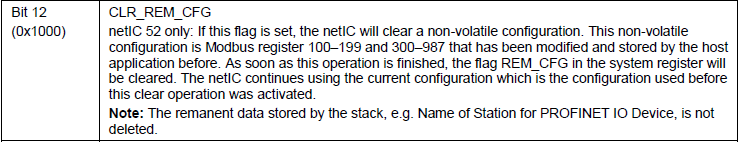

BUT he needs to use this flag for clearing the configuration:

Page 94: netIC - Real-Time Ethernet and Fieldbus Gateways UM DG 36 EN.pdf


Mirko 2020-03-13:

The feature CLR_CFG / STR_CFG supported beginning with netIC FW V2.3 works only in conjunction with a new "second stage boot loader" which is not yet introduced in the netIC production.

This is addressed to product managment.

If you want, i can provide a such special 2nd boot loader to just for test purposes on your local desk.

Then you have the chance at least to test this feature on you desk.

Otherwise you should wait until new netIC with a new 2nd stage loader are deliverd.


Handling for storage:

The CLR_CFG (bit6) is only required once as long the configuration from the netX Configuration tool is still present in the netIC.

As long the  "netX Configuration tool configuration" is present you can NOT set the STR_CFG (bit 7) an exception will appear.

You can check the flag FLS_CFG (bit7) in the status register if a "netX Configuration tool configuration" is present or not.


Once the  "netX Configuration tool configuration" is cleared you can store the configuration any time with STR_CFG (bit 7).

Its is not required to clear the config any time before. Just modify and store.


A new flag REM_CFG (bit12) has been spend in the status register to indicate that the netIC has loaded a remanent configuration by the host.

If you want to delete the remanent configuration written by the host you must use the new defined flag CLR_REM_CFG (bit12) in the command regsiter.

Once you have stored the configuration you activate it eather by setting the INIT flag or RESTET the netIC with the Reste Flag.
